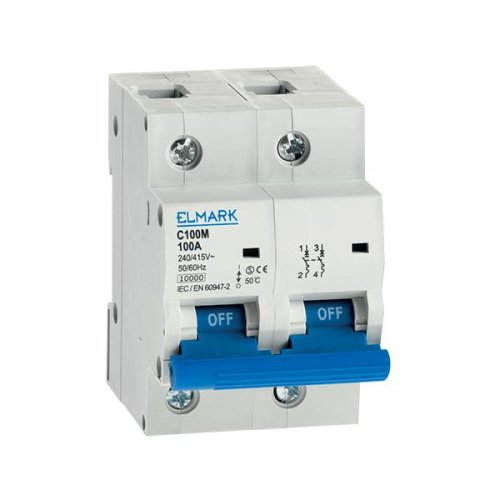

INT. MAGNETOTERMICO C100A 10KA C100M 2P CURVA C

Technical characteristics:
- Rated operating voltage: 230/400V 50/60Hz
- Insulation voltage:&ge 2000 V
- Rated current: 80-125А
- Breaking capacity: 10 000 А
- Poles: 1 2 3 4
- Tripping curve: C D
С - the maximum current release breaks between 5 and 10 In used to protect power supply cables and conventional consumers
D - the maximum current release breaks between 10 and 14 In used to protect consumers with high starting current (electrical motors, transformers)

- Electrical wear resistance (number of cycles ):&ge 4000
- Mechanical wear resistance (number of cycles):&ge 20000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65° С± 2° С

Mounting: Vertically on a DIN rail

Standards: EN60898-1 EN60947-2
