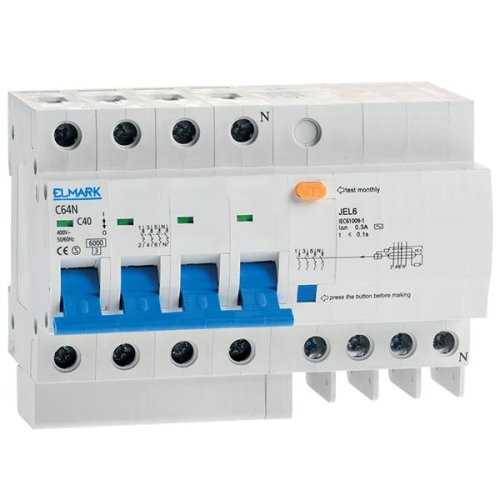

DISPOSITIVO COMBINATO ELETTRONICO DI CORRENTE RESIDUA JEL6 C50 3P+N 50A/300MA

Description:
- Combined circuit breakers with electronic residual current devices

Technical characteristics:
- Rated operating voltage: 230V/400V,50Hz
- Rated current: 10-50 А
- Responsiveness of the Residual current device: 30/100/300/500mA
- Number of poles: 2 / 3 / 4
- Tripping curve of the circuit breaker: С
- Surge voltage wear resistance: &ge 2 000V
- Breaking capacity: 4,5кА
- Activation time:
of the residual current device <0.1s at I&Delta n and <0.04s at 2 I&Delta n
of thte circuit breaker: < 0.1s
- Ambient temperature: -10° ÷ 65º С
- Installation altitude: up to 2000m

Mounting: Vertically on a DIN rail

Standards: EN61009-1 EN61009-2
